windows65 Fixed Window
Fixed glazing for light, views and coordinated window layouts.
Reference image for the selected system. Final layout is project-specific.
65 · Core rangeStart with the system.
Start with the system.
Refine it to your plans.
| Opening type | Fixed window |
| System | 65 · Core range |
| Available glazing | 5+20A+5 |
| Operation | Fixed glazing |
| Profile | 1.8 mm |
| Indicative size range | Project-specific; confirm from schedule |
| Hardware | Project-specific |
| Configuration | Wooden frame or aluminium sub-frame |
| Installation | Wooden frame or aluminium sub-frame |
Dimensions, finishes, hardware, installation scope and test documentation require confirmation for the selected project configuration.
See the system in detail.

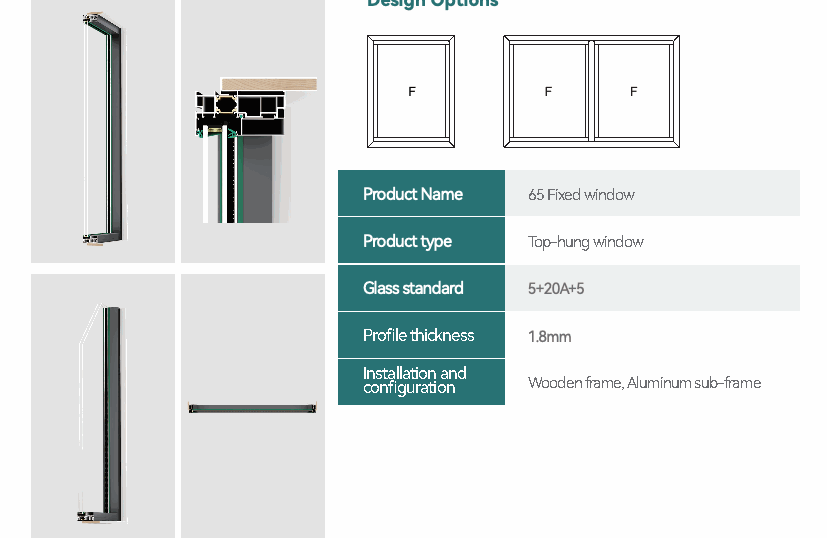

Design options
The reference panel shows the opening configurations, section detail and component layout available for project discussion.
How to use this page
Use the visual detail together with your window or door schedule. Final dimensions, glass, hardware, colour and installation scope are confirmed per project.
Where this system fits.
Design and configuration
Fixed panel coordinated with adjacent opening types
Selection focus
Confirm frame depth, glass build-up and combination layout
What to confirm for your project.
Opening and layout
Confirm the opening type, panel count, combination layout and the sizes shown on your drawings.
Glass and hardware
Match the available glazing to the project brief, then review safety glass, mesh, restrictors and hardware where required.
Scope and documentation
Confirm finishes, installation, delivery and the technical documents needed before pricing.
The information shown is a starting point for project discussion. It does not replace a project schedule, engineering review or compliance documentation.
