windows76 Awning Window
A hand-cranked awning option for whole-home window schedules.
Reference image for the selected system. Final layout is project-specific.
Type 76 · Core rangeStart with the system.
Start with the system.
Refine it to your plans.
| Opening type | Awning / top-hung |
| System | Type 76 · Core range |
| Available glazing | 5+9A+5 |
| Operation | Hand-cranked awning / top-hung |
| Profile | 1.4 mm; reinforced areas 2.8 mm |
| Indicative size range | W350–1200 mm · H300–1200 mm |
| Hardware | ZEKIN hardware |
| Mesh | High-transparency gauze mesh |
| Installation | Wooden frame or aluminium sub-frame |
Dimensions, finishes, hardware, installation scope and test documentation require confirmation for the selected project configuration.
See the system in detail.
Design options

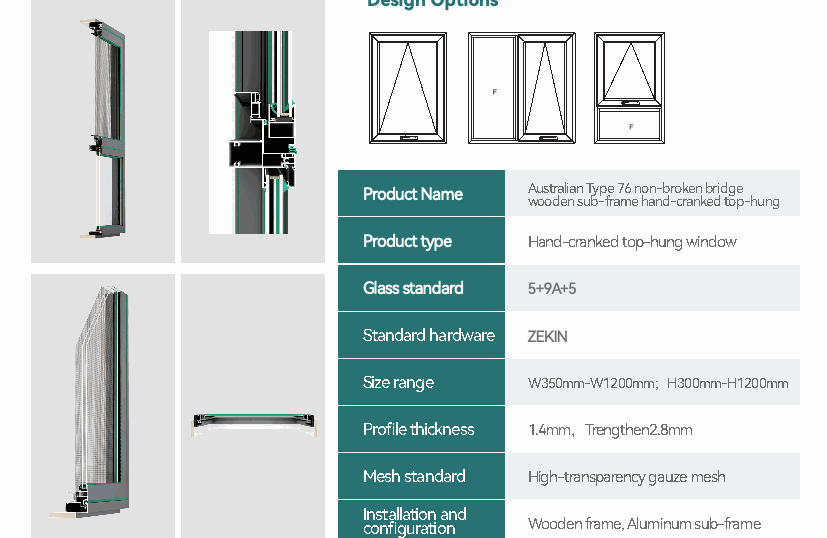

The reference panel shows the opening configurations, section detail and component layout available for project discussion.
How to use this page
Use the visual detail together with your window or door schedule. Final dimensions, glass, hardware, colour and installation scope are confirmed per project.
Where this system fits.
Design and configuration
Awning / top-hung opening with screen option
Selection focus
Confirm glazing, screen, restrictor and project energy requirements
What to confirm for your project.
Opening and layout
Confirm the opening type, panel count, combination layout and the sizes shown on your drawings.
Glass and hardware
Match the available glazing to the project brief, then review safety glass, mesh, restrictors and hardware where required.
Scope and documentation
Confirm finishes, installation, delivery and the technical documents needed before pricing.
The information shown is a starting point for project discussion. It does not replace a project schedule, engineering review or compliance documentation.
